Xnova XTS 4535-520 4+4YY (8mm Welle)

XN-XTS-4535-520-8

handgewickelter Powermotor (1,6mm Draht) für 700-800er Helis (12-14S Lipo), für höchste Ansprüche, wie Speed Helis oder Extrem 3D Helis und dank der langen Welle auch für den Mikado Logo 700XX geeignet...

470,00 CHF
420,00 CHF Sparen 50,00 CHF
Bruttopreis
Menge
Lieferzeit 2-3 Tage

Beschreibung

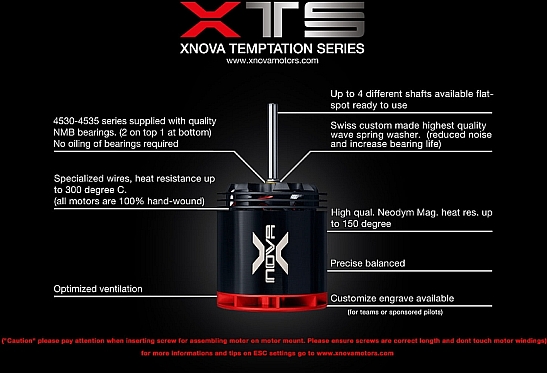

Xnova XTS 4535-520 4+4YY - 8mm Welle (Typ C)


Xnova brushless high performance outrunner motor designed for 12S and 14S crazy power 3D from 700 and up to  800mm size helicopter where highest power to weight ratio is important. One of the most powerfull motor currently available. Also a perfect fit for speed flying. This Motor will bring your 800 size to a different level!



  • High qual. Neodym Mag.heat res. up to 150 degree C.
  • Specialized wires,heat resistance up to 300 degree C.
  • Precise balanced.
  • High performance stator metal sheet.
  • High quality NMB bearings. (2 on top 1 at bottom)
  • Marked leading high effiency up to 94%.
  • Cooler running.
  • Superb quality and machining of CNC parts.
  • Improved torque and power output.
  • 1.6 mm thick wire.





Technische Daten:

Slots & Poles 12n10p
Winding T 4+4 YY with 1.6mm thick wire
rpm/V 520
Volt (V) 10 | 20 | 30 | 40 | 50 | 55
Io(A) 2.3 | 3.2 | 4.2 | 5.2 | 5.9 | 6.7
Rm (mohm) 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5
Weight (without connector) (g) 624
Body Length (no shaft) mm 65.5
Diameter (mm) 55.7
Shaft Length (mm) 61
Shaft Dia. (mm)  8
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 55.38 | 92.38 | 129.61 | 166.53 | 198.33 | 221.66
Max Eff. 91.69 |93.07 | 93.52 | 93.76 | 94.05 | 93.95
Kt (Nm/A 0.0187
Km (Nm/sqrt(w)) 0.2162
Max Continuous Power(Watts) 6500
Peak Continuous Power(Watts) (5 sec) 13000 (2sec)
Max cont. current (A) 180




Produktdetails
XN-XTS-4535-520-8
